- No Afterglow
- Ultra High Efficiency (Up to 94.0%)
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 0-10V / 10V PWM / Resistor / 3-Timer-Modes Dimmable
- Dim-to-Off with Standby Power ≤ 0.5 W
- Maximum Dimming Level with 9 V or 10 V Selectable
- Fade-time Adjustable
- Always-on Auxiliary Power: 12 Vdc, 250 mA
- Low Inrush Current
- Output Lumen Compensation
- End-of-Life Indicator
- Input Surge Protection: DM 6 kV, CM 6 kV
- All-Around Protection: OVP, SCP, OTP
- IP65 and UL Dry/Damp Location (MF models)
- IP66/IP67 and UL Dry/Damp/Wet Location (MG/MT models)
- Suitable for Luminaires with Protection Class I
- 5 Year Warranty
Life Time
120,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
10.12 × 1.71 × 1.24
Millimeters (L x W x H)
257 × 43.5 × 31.5
Certifications
| Adjustable Output Current Range(mA) | Full-Power Current Range(mA) | Default Output Current(mA) | Output Voltage Range(Vdc) | Max. Output Power(W) | Typical Efficiency | Typical Power Factor | Model Number | |
|---|---|---|---|---|---|---|---|---|
| 200Vac | 480Vac | |||||||

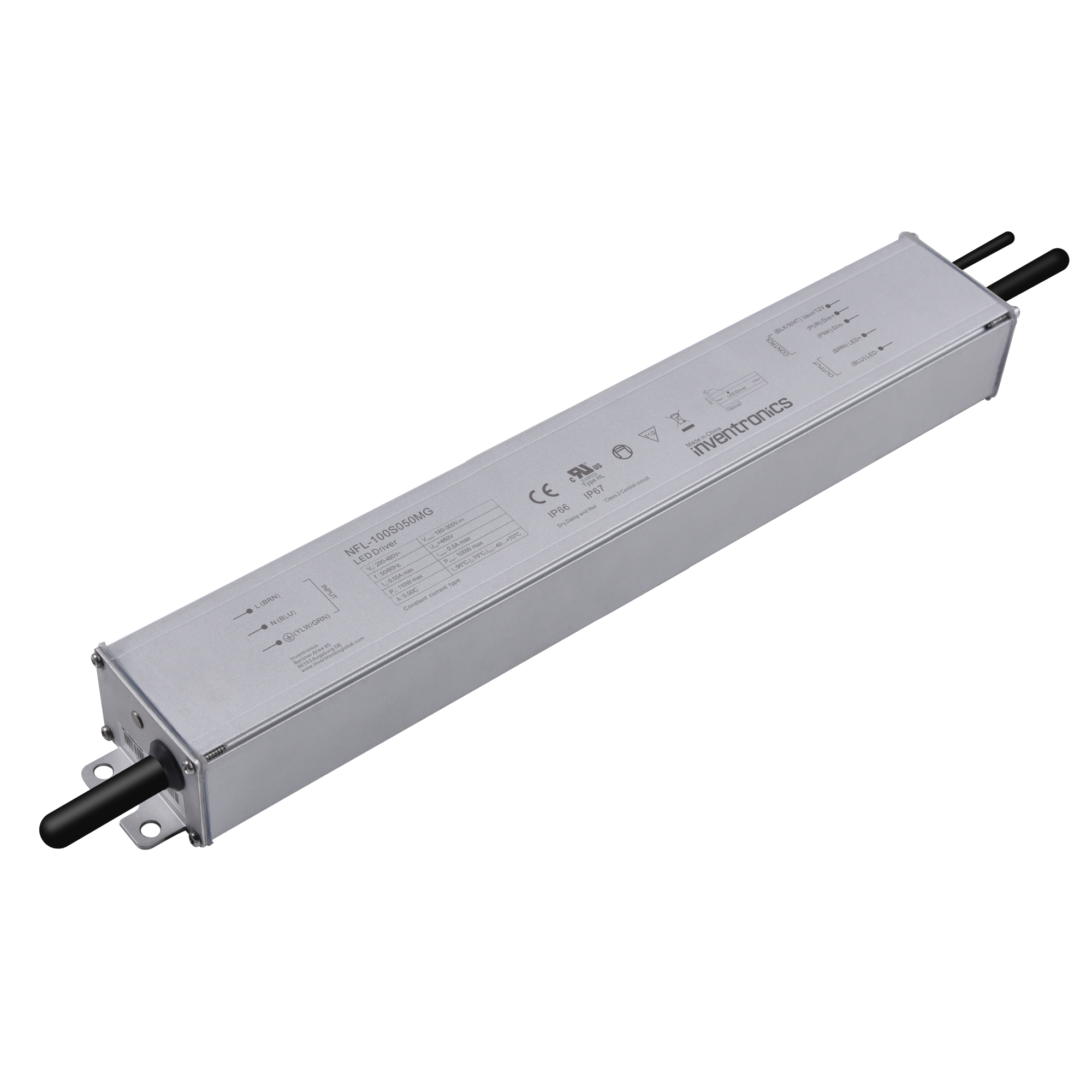

| 33-500 | 333-500 | 350 | 180-300 | 100 | 94.0% | 0.99 | 0.94 | NFL-100S050MG |
|
