Features
• Full Power at Wide Output Current Range (Constant Power)
• Adjustable Output Current (AOC) with NFC
• AstroDIM (Timer) for Autonomous Dimming with Five Independent Levels (Astro, Time Mode)
• Dim‑to‑Off with Standby Power ≤ 0.5 W
• Integrated 16Vdc Bus Power Supply Based on DALI‑2
• Constant Lumen
• End‑of‑Life Indicator
• Input Surge Protection: DM 6kV, CM 10kV
• All‑Around Protection: OTP, OVP, SCP, OLP, NLP, IUVP, IOVP, Driver Guard
• Supports DALI Programming and NFC Programming
• DEXAL Interface Based on DALI‑2 Communication
• DALI‑2 and D4i Certified
• Always‑on Auxiliary Power: 24Vdc, 125mA, 3W (Transient Peak Power up to 6W)
• Complies with Zhaga Interface Specification Book 13
• Integrated Power Monitoring with Accuracy up to ±5%
• Enables Programming via DALI Cables up to 15m Length
• Fully Compatible with T4T (Tuner4TRONIC) and T4T Field App
Application
• IP20 Design and Suitable for Outdoor Applications in Luminaires with IP > 54
• Suitable for Luminaires with Protection Class I and II
• Suitable for Built‑in Use
• Street and Urban Lighting
Life Time
| Lifetime at Tc_w – 10°C | 100,000 Hours | Measured at 230Vac input |
Dimensions
Inches (L x W x H)
5.91 x 3.54 x 1.56
Millimeters (L x W x H)
150.0 x 90.0 x 39.5
Certifications
Models
| Adjustable Output Current Range (mA) | Full Power Current Range (mA) | Default Output Current (mA) | Nominal Output Voltage Range (Vdc) | Maximum Output Power (W) | Typical Efficiency | Power Factor λ | Product Name |
|---|---|---|---|---|---|---|---|

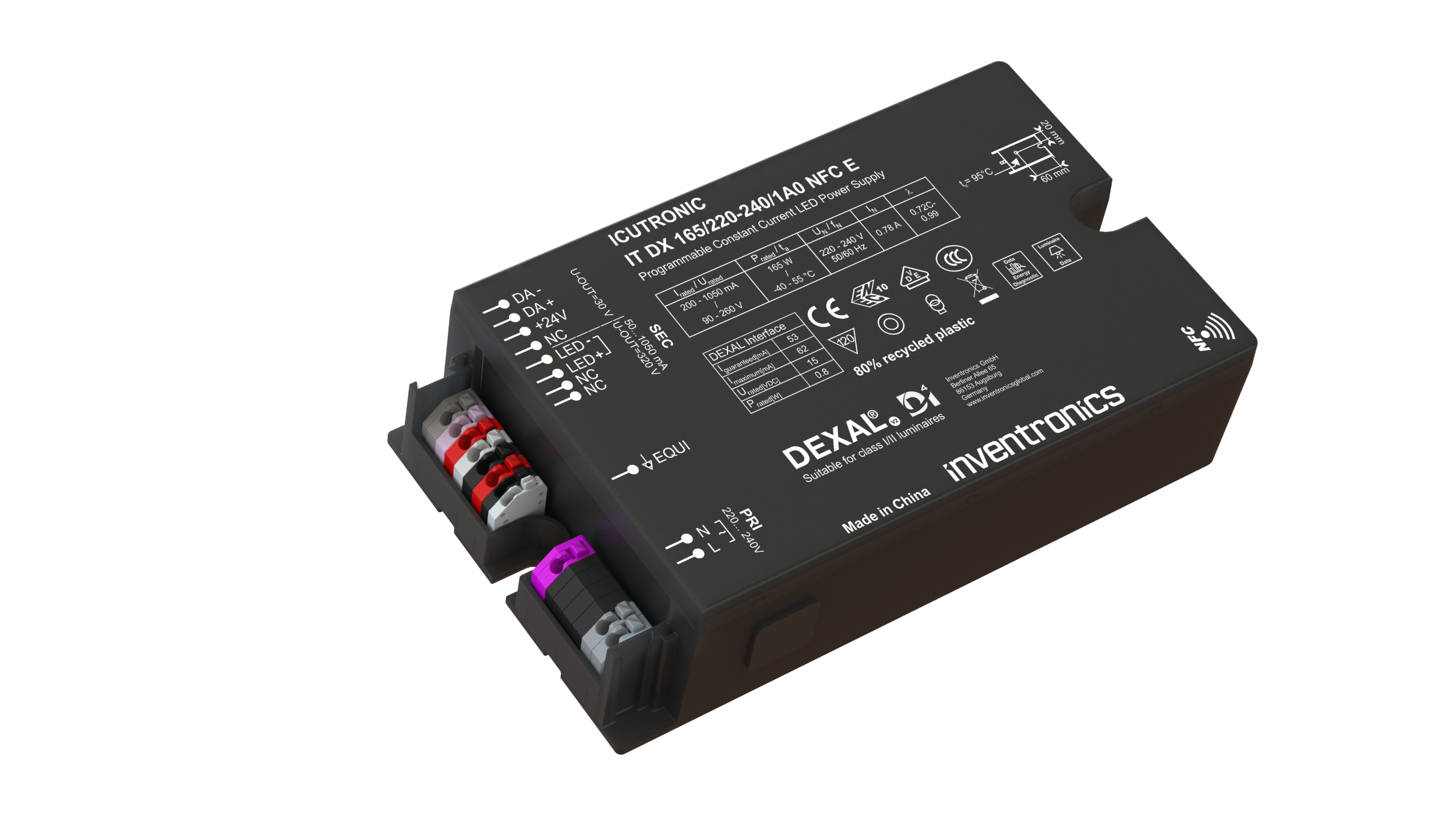

| 200-1050 | 635-1050 | 700 | 90-260 | 165 | 94.0% | 0.99 | IT DX 165/220-240/1A0 NFC E |
|
