Features
- Compact metal case with excellent thermal performance
- Full power at wide output current range (constant power)
- Adjustable output current (AOC) with T4T (Tuner4TRONIC)
- Isolated 1(0)-5V / 1(0)-10V / PWM / Resistor / AstroDIM (Timer) dimmable
- Dim-to-Off with standby power ≤ 0.5 W
- Adjustable dimming curve
- Dimming port withstands 240 Vac
- End-of-life indicator
- Override dimming
- Constant lumen
- Input surge protection: DM 6 kV, CM 10 kV
- All-around protection: OTP, OVP, SCP
- 5 Years Warranty
Application
- IP66/IP67
- Suitable for Luminaires with Protection Class I
Life Time
120,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
6.73 x 2.36 x 1.31
Millimeters (L x W x H)
171 x 60 x 33.4
Certifications
MODELS
| Adjustable Output Current Range (mA) |
Full Power Current Range (mA) |
Default Output Current (mA) |
Nominal Output Voltage Range (Vdc) |
Maximum Output Power (W) |
Typical Efficiency |
Power Factor λ 120Vac |
Power Factor λ 230Vac |
Product Name |
|---|---|---|---|---|---|---|---|---|
| 53–700 | 530–700 | 530 | 142–378 | 200 | 94.0% | 0.99 | 0.96 | IT 0-10 200/100-277/0A7 P67 V DP |

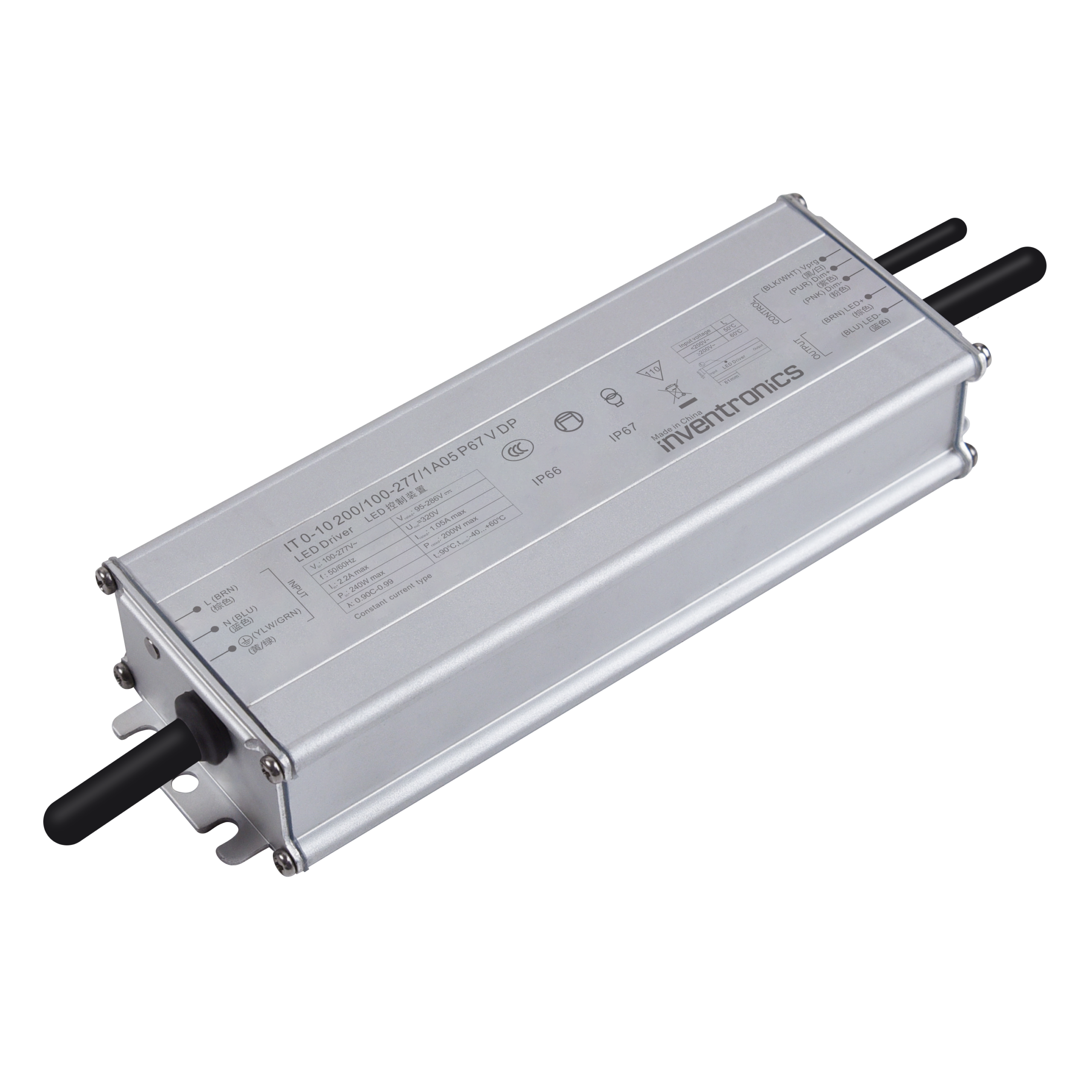

| 70–1050 | 700–1050 | 700 | 95–286 | 200 | 94.0% | 0.99 | 0.96 | IT 0-10 200/100-277/1A05 P67 V DP |
| 105–1500 | 1050–1500 | 1050 | 67–190 | 200 | 94.0% | 0.99 | 0.96 | IT 0-10 200/100-277/1A5 P67 V DP |
| 350–5600 | 3500–5600 | 4200 | 18–57 | 200 | 94.0% | 0.99 | 0.96 | IT 0-10 200/100-277/5A6 P67 V DP |
|
