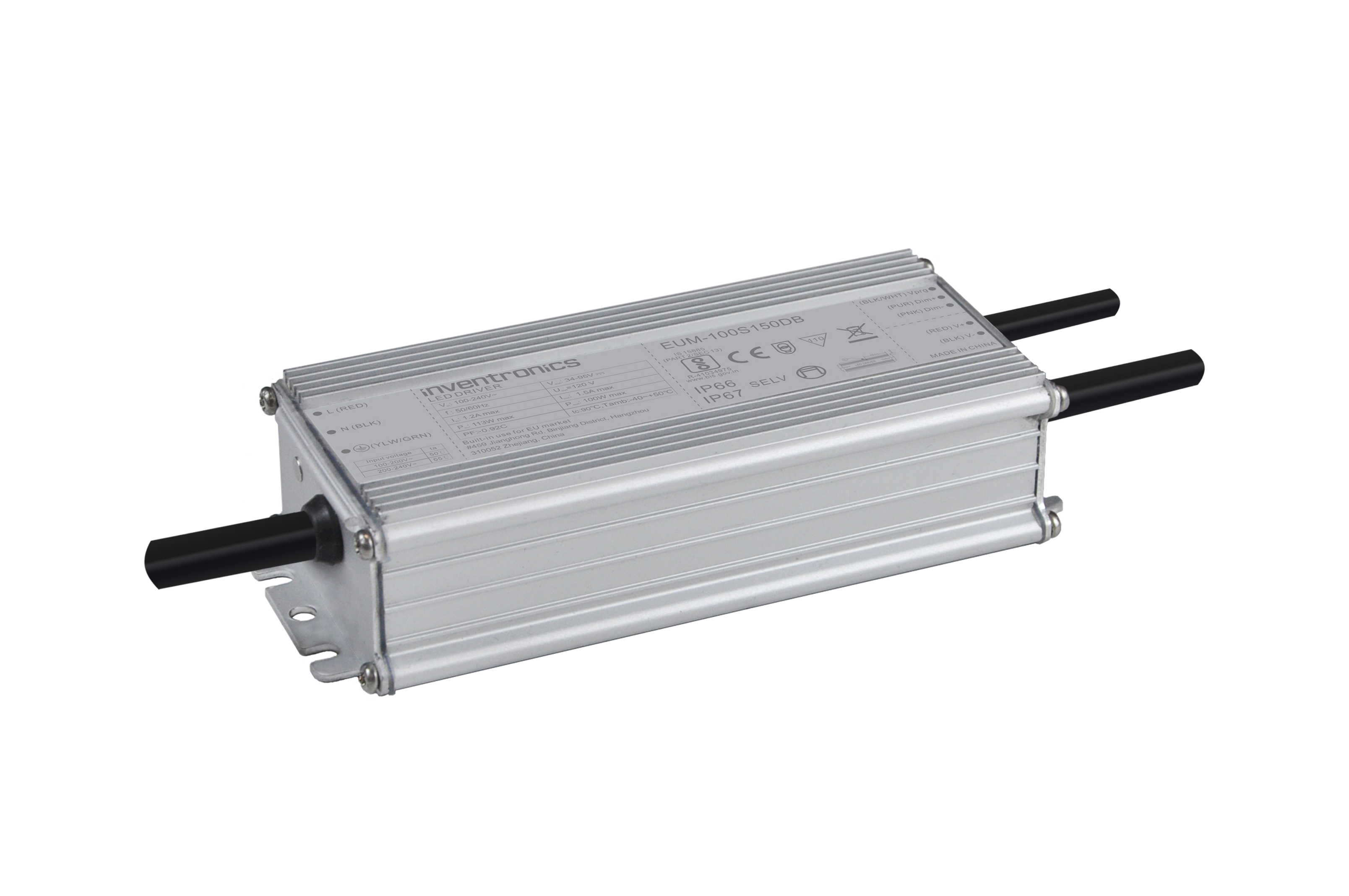

• Compact Metal Case with Excellent Thermal Performance
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with Programmability
  • Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
  • Output Lumen Compensation
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: OVP, SCP, OTP
  • IP66/IP67 and UL Dry/Damp/Wet Location
  • Class 2 & SELV Output
  • Suitable for Luminaires with Protection Class I
  • TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
  • 5 Year Warranty
Download Data Sheet
Order Here

Life Time

114,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
5.16 x 2.36 x 1.44

Millimeters (L x W x H)
131 x 60 x 36.5

Certifications

Adjustable
Output
Current
Range(mA)		 Full-Power
Current
Range(mA)		 Default
Output
Current(mA)		 Output
Voltage
Range(Vdc)		 Max.
Output
Power(W)		 Typical
Efficiency		 Typical
Power Factor
120Vac		 Typical
Power Factor
220Vac		 Model Number
35-530 350-530 530 94-286 100 94.0% 0.99 0.96 EUM-100S280DB
70-1050 700-1050 700 48-143 100 93.0% 0.99 0.96 EUM-100S280DB
105-1500 1050-1500 1050 34-95 100 93.0% 0.99 0.96 EUM-100S280DB
175-2800 1750-2800 2100 17-54 96 92.0% 0.99 0.96 EUM-100S280DB
File Name
LED Driver Installation Instructions (Updated March 2015)
Download
Programming Interface Device Driver Install First (Updated March 2015)
Download
Design-in Guide for Programming Drivers (updated September 2018)
Download
Programming Interface Installation Instructions (Updated April 2015)
Download
Programming Interface Operating Instructions (Updated January 2016)
Download
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018)
Download
