FEATURES

  • Low THD, 10% max up to 240 Vac

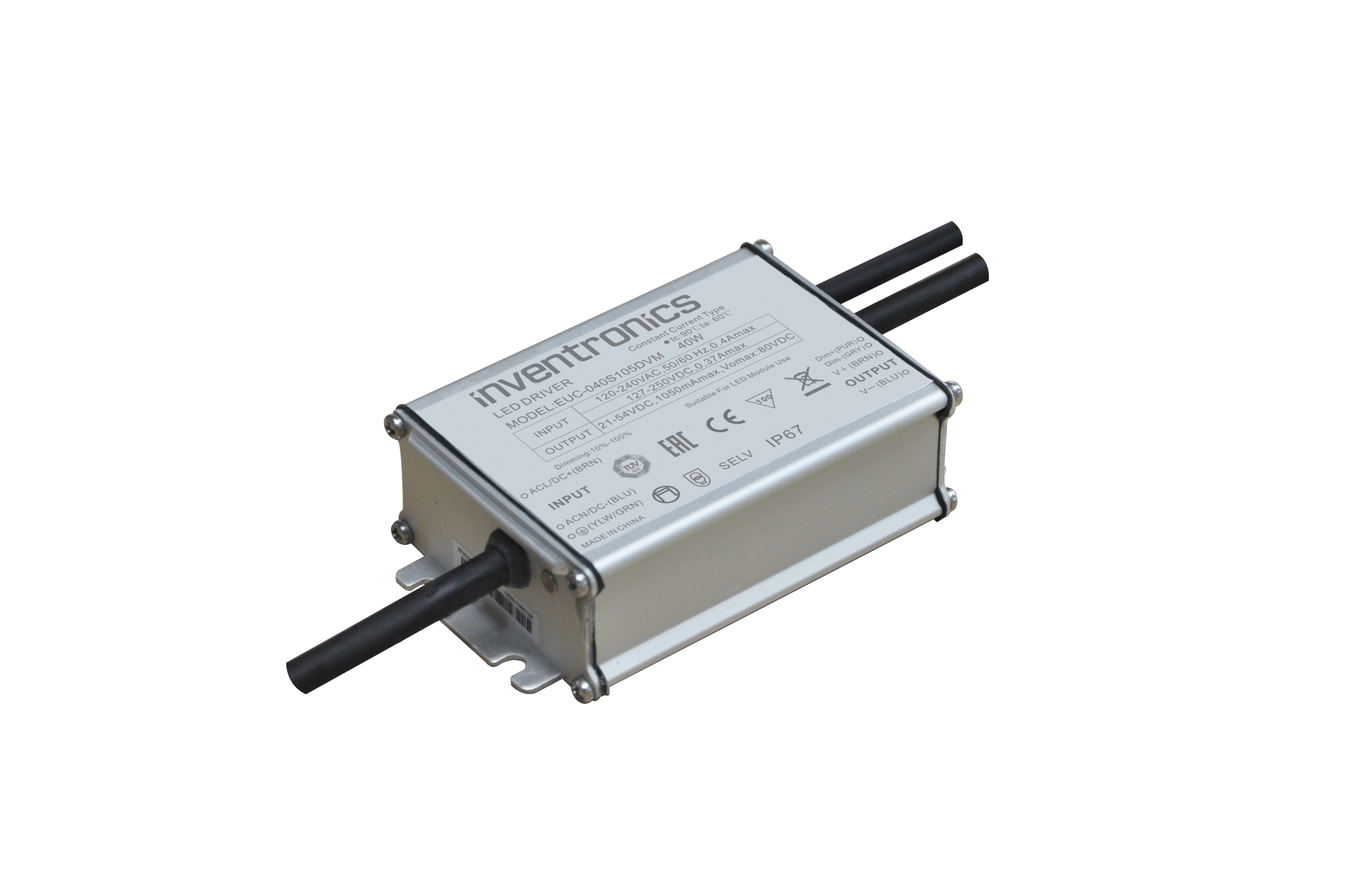

  • Compact metal case with excellent thermal performance
  • Isolated 0–10V dimmable
  • Input surge protection: DM 4kV, CM 6kV
  • High reliability & long lifetime: 93,000 hrs at 75°C case temperature
  • Suitable for built-in use and Class I luminaires
  • IUVP & IOVP
  • IP66 and UL dry/damp location rated
  • Class 2 & SELV output
  • Type HL, for use in a Class I, Division 2 hazardous (classified) location
  • 5 Year Warranty
Download Data Sheet
Order Here

Life Time

93,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
3.46 x 2.52 x 1.26

Millimeters (L x W x H)
88 x 64 x 32

Certifications

TUV SUD Certification Logo

Output Current Input Voltage Range Output Voltage Range Max. Output Power Model Number
500 mA

176 ~ 305 Vac
127 ~ 250 Vdc

 40 – 80 Vdc

40 W

 EUC-040S070DVM0004
700 mA 32 – 57 Vdc EUC-040S070DVM
860 mA 23 – 47 Vdc EUC-040S105DVM0004
1050 mA 21 – 38 Vdc EUC-040S105DVM
Note: Models listed are not all-inclusive. For additional models please contact our sales department.
File Name
LED Driver Installation Instructions (Updated March 2015)
