Product Features

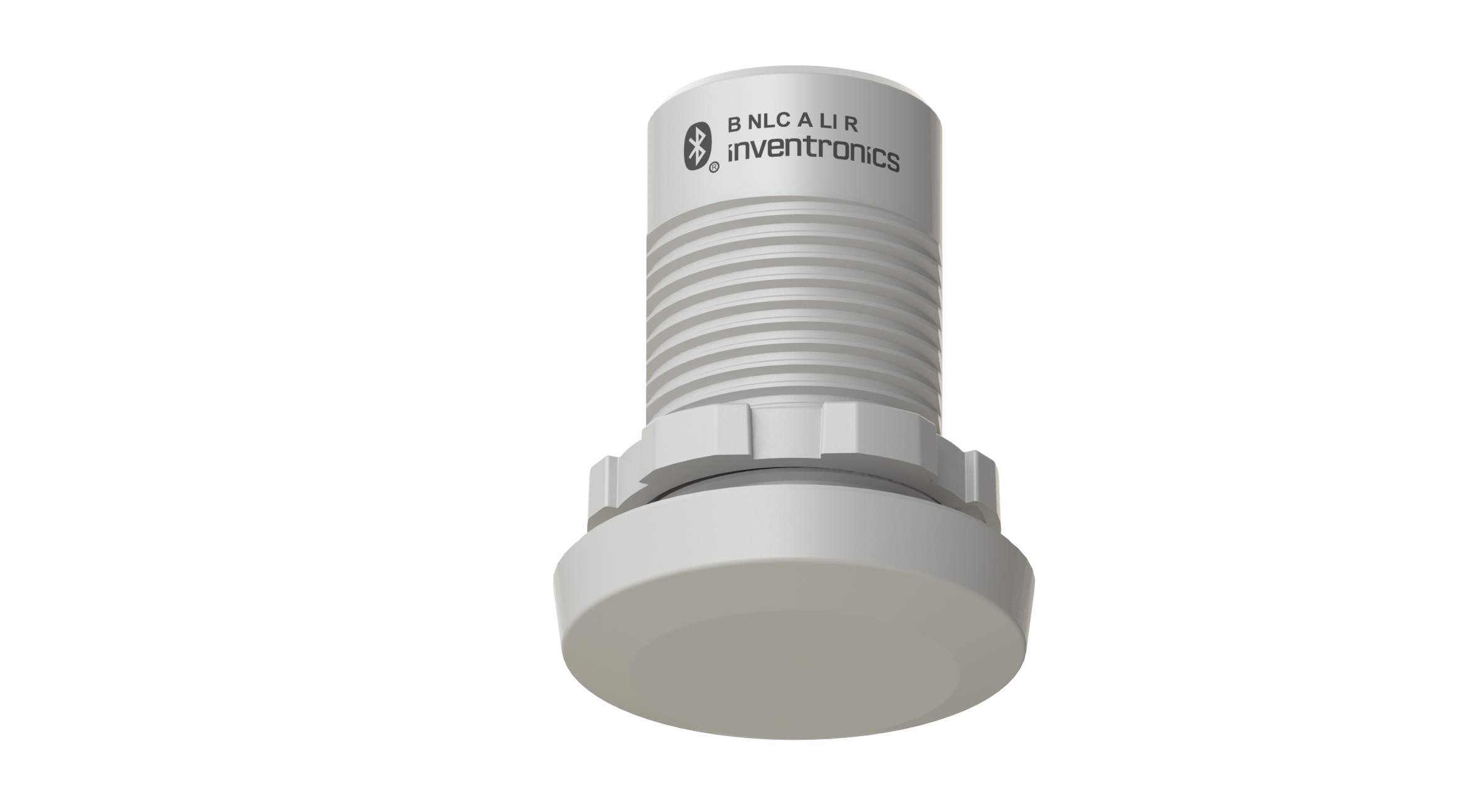

- Dongle for luminaire integration based on Bluetooth NLC
- 0.10VDC Controlled
- Standby power consumption <200mW
- 50,000 h lifetime at tc max = 60°C / 140°F
- UL certified
- 5 Years Guarantee
Life Time
50,000 hours @ Ta=50°C / 122°F or Tc=60°C / 140°F
Dimensions
| Screw thread length | 28.3 / 11.1 | mm / in |
| Length | 41.8 / 1.65 | mm / in |
| Diameter internal | 21.8 / 0.86 | mm / in |
| Diameter external | 33 / 1.3 | mm / in |
| Protrusion | 7.8 / 3.0 | mm / in |
| Mounting hole diameter | 22.2 – 23.2 8.7 – 9.1 |
mm / in |
| Wire preparation length, input side | 7.5 … 9.5 0.3 … 0.37 |
mm / in |
| Cable cross section, input side | 0.20 … 0.75 24 … 18 |
mm² AWG |
| Maximum allowed cable length | 10 / 33 | m / ft |
Certifications
CE; LVD; EMC; RoHs & Reach compliance; UL
| Item | Value | Unit | Remarks |
| Rated voltage | 12 – 24 | Vdc | According to D4I standard |
| Average input current | <16 | mA | @12V |
| Peak input current | <30 | mA | |
| Power Consumption | <200 | mW | @12V |
| Radio frequency | 2.4 | GHz | |
| Max Tx Power | +8 | dBm | 4.884 mW |
| Wireless protocol | Bluetooth NLC provided by SILVAIR | ||
| Range | 20 / 65 | m / ft | Line of sight |
