FEATURES
- LED- to PE Protection Mode
- Parallel Installation
- Suitable for Inventronics NFS & NSS & NFM & NSM Series Drivers
Life Time
| Parameter | Min. | Typ. | Max. | Notes |
|---|---|---|---|---|
| Operating Temperature | -40°C | – | +70°C | Humidity: 5%RH to 85%RH. No condensation. |
| Storage Temperature | -40°C | – | +85°C | Humidity: 5%RH to 85%RH. No condensation. |

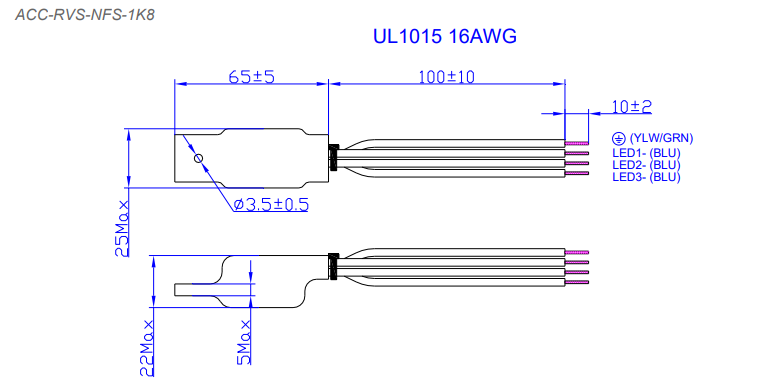

Dimensions
Certifications
Models
| Wiring Configuration | Protection Mode | IP Rating | Part Number |
|---|---|---|---|
| Parallel | LED- to PE | IP20 | ACC-RVS-NFS-600 |
| Parallel | LED1-/LED2- to PE | IP20 | ACC-RVS-NFS-1K2 |
| Parallel | LED1-/LED2-/LED3- to PE | IP20 | ACC-RVS-NFS-1K8 |
Compatible List
| Part Number | Driver Part Number |
|---|---|
| ACC-RVS-NFS-600 | NFS-600/900SxxxBC |
| NSS-700/1K2SxxxBC | |
| NFM-500/680/880/1K2SxxxGG | |
| NFM-500/680/880/1K2SxxxGT | |
| NFM-500/680/880/1K2SxxxMG | |
| NFM-500/680/880/1K2SxxxMT | |
| NSM-680/880/1K2/1K5SxxxGG | |
| NSM-680/880/1K2/1K5SxxxGT | |
| NSM-680/880/1K2/1K5SxxxMG | |
| NSM-680/880/1K2/1K5SxxxMT | |
| ACC-RVS-NFS-1K2 | NFS-1K2DxxxBC |
| NSS-1K5DxxxBC | |
| ACC-RVS-NFS-1K8 | NFS-1K8TxxxBC |
| NSS-2K1TxxxBC |
