FEATURES

  • Ultra High Efficiency (Up to 94.5%)
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with Programmability
  • Isolated 0–10V / 10V PWM / Resistor Dimmable
  • Dim-to-Low-Voltage (DTLV) with Standby Power ≤ 0.5W
  • Maximum Dimming Level with 9V or 10V Selectable
  • Fade-Time Adjustable
  • Output Lumen Compensation
  • End-of-Life Indicator
  • Input Surge Protection: DM 6kV, CM 6kV
  • All-Around Protection: OVP, SCP, OTP
  • IP65 and UL Dry/Damp Location
  • TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
  • 5 Year Warranty
Download Data Sheet
Order Here

Life Time

120,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
10.71 × 1.71 × 1.24

Millimeters (L x W x H)
272 × 43.5 × 31.5

Certifications

Full-Power Current Range  Default Output Current  Input Voltage Range  Output Voltage Range  Max. Output Power  Model Number
4100mA – 5300mA 4100 mA 90-305Vac

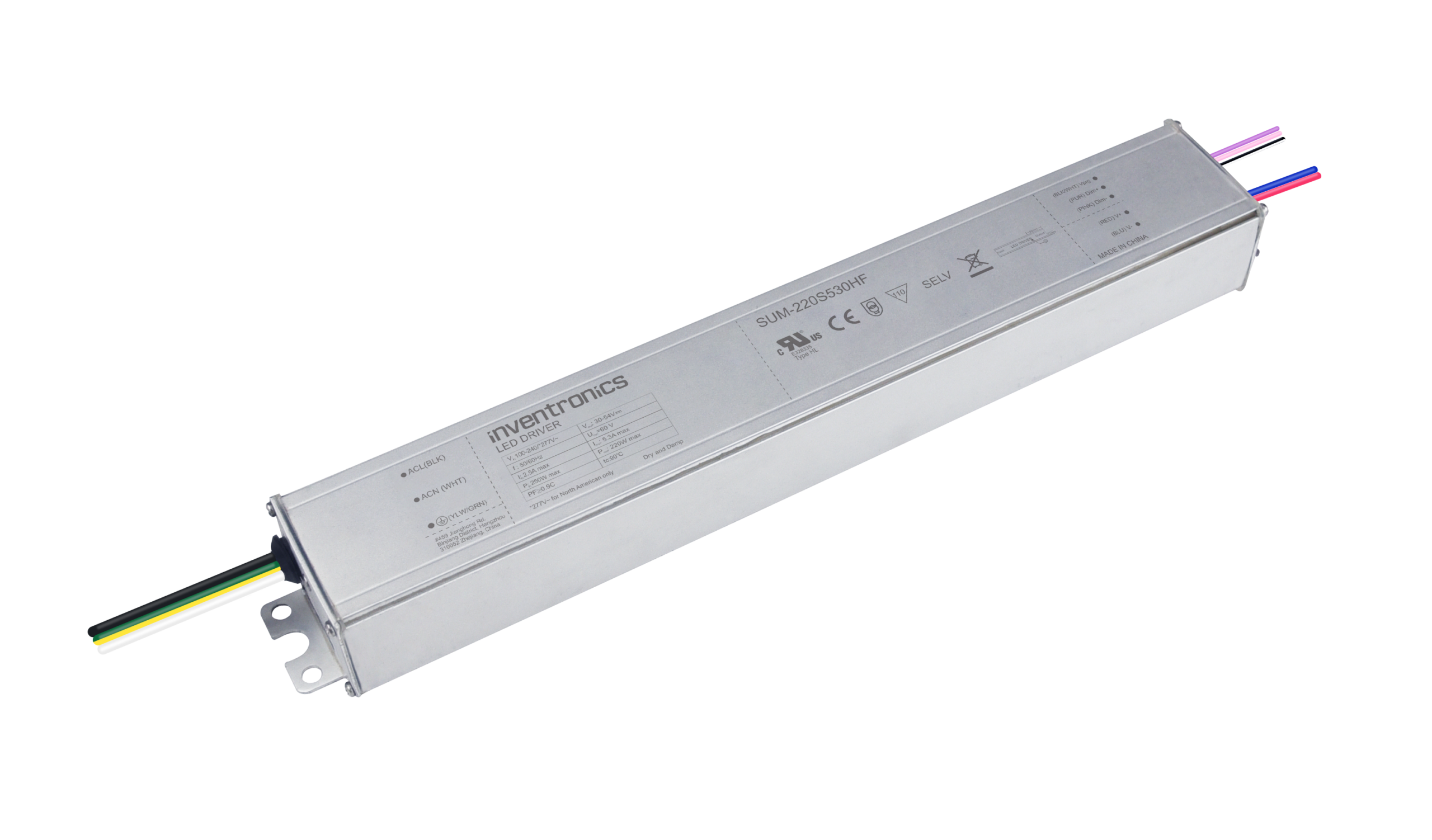

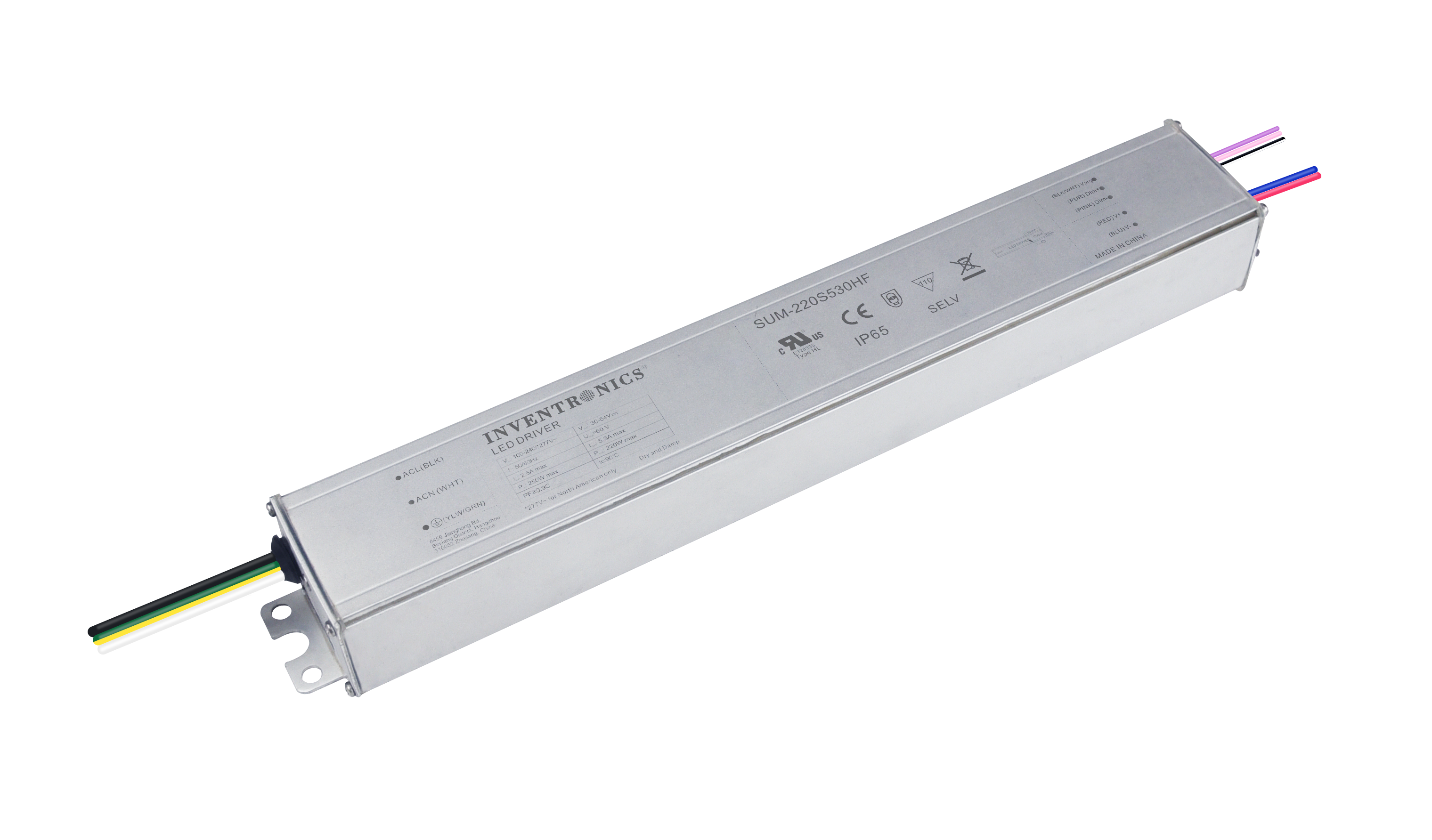

127 – 300Vdc		 30 – 54Vdc 220W SUM-220S530HF
