Features
- Maximum Continuous Operating Voltage (L-N/L1-L2)：510Vac
- Maximum Continuous Operating Voltage (L-PE/N-PE)：320Vac
- L-N、L-PE and N-PE Protection Mode
- Suitable for TN Systems
- Maximum Discharge Current (Imax) 20kA, 8/20μs
- Nominal Discharge Current (In) 10kA, 8/20μs
- Open Circuit Voltage (Uoc) 20kV, 1.2/50μs\
- Thermally Protected
- End-of-life LED Indicator
- EN 61643-11 – T2 & T3
- IEC 61643-11 – Test Class II & Class III
- Parallel Installation
- IP65
Life Time
| Parameter | Min. | Typ. | Max. | Notes |
|---|---|---|---|---|
| Operating Temperature | -40 °C | – | +85 °C | Humidity: 10% RH to 95% RH |
| Storage Temperature | -40 °C | – | +85 °C | Humidity: 5% RH to 95% RH |
Dimensions
Inches: 2.76 × 1.55 × 0.70
MM: 70 × 39.3 × 17.7
Certifications
| Certification | Wiring Configuration | Protection Mode | Max Clamped Voltage | Indicator Light | Wires | IP Rating | Model Number | |
|---|---|---|---|---|---|---|---|---|
| L-N/L-PE | N-PE | |||||||
| TUV, CE, CB | Parallel | DM/CM | 2500V | 3200V | Y | Flying Leads | IP65 | SPD 20/510 PL P5 FL |

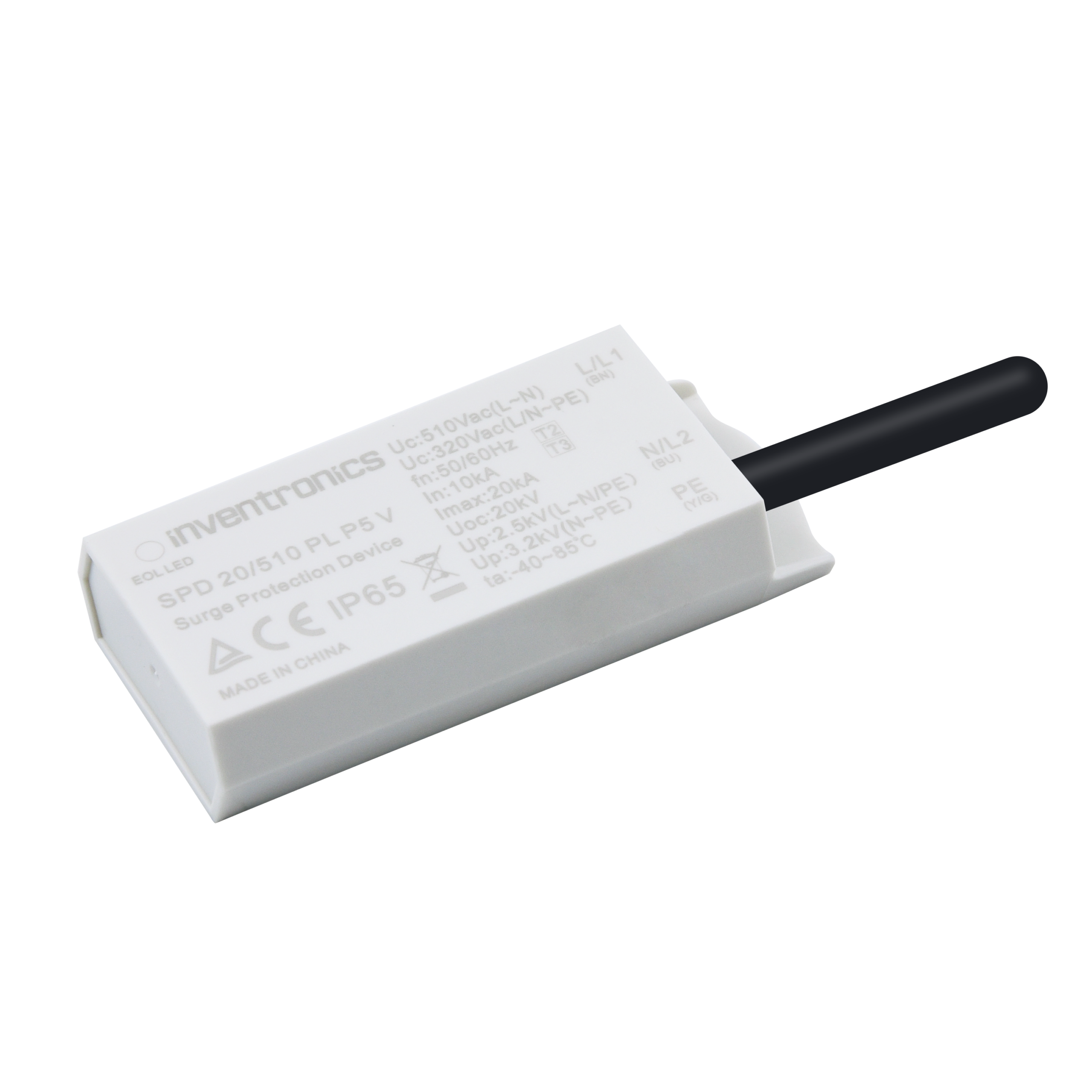

| TUV, CE, CB | Parallel | DM/CM | 2500V | 3200V | Y | Cables | IP65 | SPD 20/510 PL P5 V |
|
