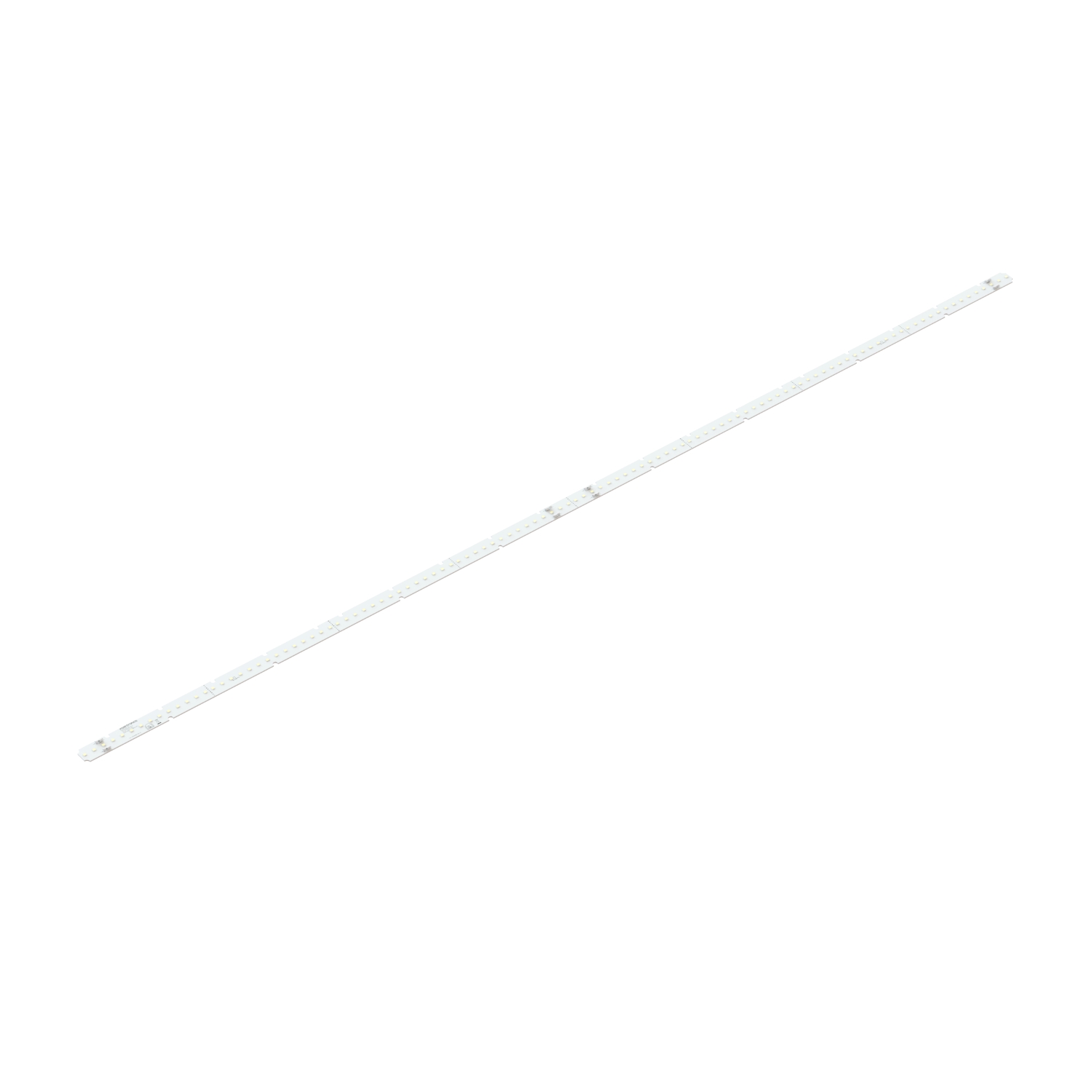

Product Features

  •  Module efficacy: up to 200 lm/W
  • Available with color temperature: 3000K, 3500K, 4000K and 5000K
  • Further color temperatures by demand
  • High initial color consistency: ≤ 3 SDCM
  • Average lifetime (L80 B50): >100,000 h (temperature at Tc = 55 °C)
  • UL Recognized



Product family benefits

  • LED module for industry and office application
  • Long lifetime support
  • High energy efficacy and long lifetime provide optimized total cost of ownership Slim width and Zhaga compliant form factor provide excellent design-in options and assembly
  • Adjustable luminous flux, efficacy and lifetime
  • System approach (LED Module + Driver)



Areas of application

  • Industry
  • Office
  • Retail
Download Data Sheet
Order Here

Life Time

Performance temp. acc. to IEC 62717 45 °C
Maximum temperature at tc test point 85 °C
Temperature range at storage -30…85 °C
Ambient temperature range -20…+75 °C

Dimensions

Product weight 80 g
Height 0.17 inch (5 mm)
Length 47.5 inch (1206 mm)
Width 0.79 inch (20 mm)

Certifications

Models

LIN-4400-830-47.5in-1R

Forward Current (mA) Forward Voltage (V) Power Consumption (W) Flux Output (lm) Efficacy (lm/W)
320 37.4 12.0 2310 193
400 37.6 15.1 2873 190
480 37.9 18.2 3427 188
560 38.1 21.4 3974 186
600 38.2 22.6 4245 185
640 38.3 24.5 4515 184
720 38.5 27.7 5050 182
800 38.7 31.0 5583 180
880 38.9 34.2 6113 178
960 39.1 37.5 6642 177
1040 39.2 40.8 7170 175
1120 39.4 44.2 7697 174
1200 39.6 47.5 8223 173
1280 39.8 50.9 8749 171
1360 40.0 54.4 9274 170
1440 40.2 57.8 9798 169
