Features
- Compact Metal Case with Excellent Thermal Performance
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with T4T (Tuner4TRONIC)
- Isolated 1(0)-5V / 1(0)-10V / PWM / Resistor / AstroDIM (Timer) Dimmable
- Dim-to-Off with Standby Power ≤ 0.5 W
- Adjustable Dimming Curve
- Dimming Port Withstand 240Vac
- End-of-Life Indicator
- Override Dimming
- Constant Lumen
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OTP, OVP, SCP
- SELV Output
- 5 Years Warranty
Application
- IP66/67
- Suitable for Luminaires with Protection Class I
Life Time
120,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
3.74 x 2.52 x 1.26
Millimeters (L x W x H)
95 x 64 x 32
Certifications
Models
| Adjustable Output Current Range (mA) | Full Power Current Range (mA) | Default Output Current (mA) | Nominal Output Voltage Range (Vdc) | Maximum Output Power (W) | Typical Efficiency | Power Factor λ | Product Name | |
|---|---|---|---|---|---|---|---|---|
| 120Vac | 230Vac | |||||||
| 30–500 | 300–500 | 350 | 30-100 | 30 | 91.0% | 0.99 | 0.96 | IT 0-10 30/100-277/0A5 P67 V DP |

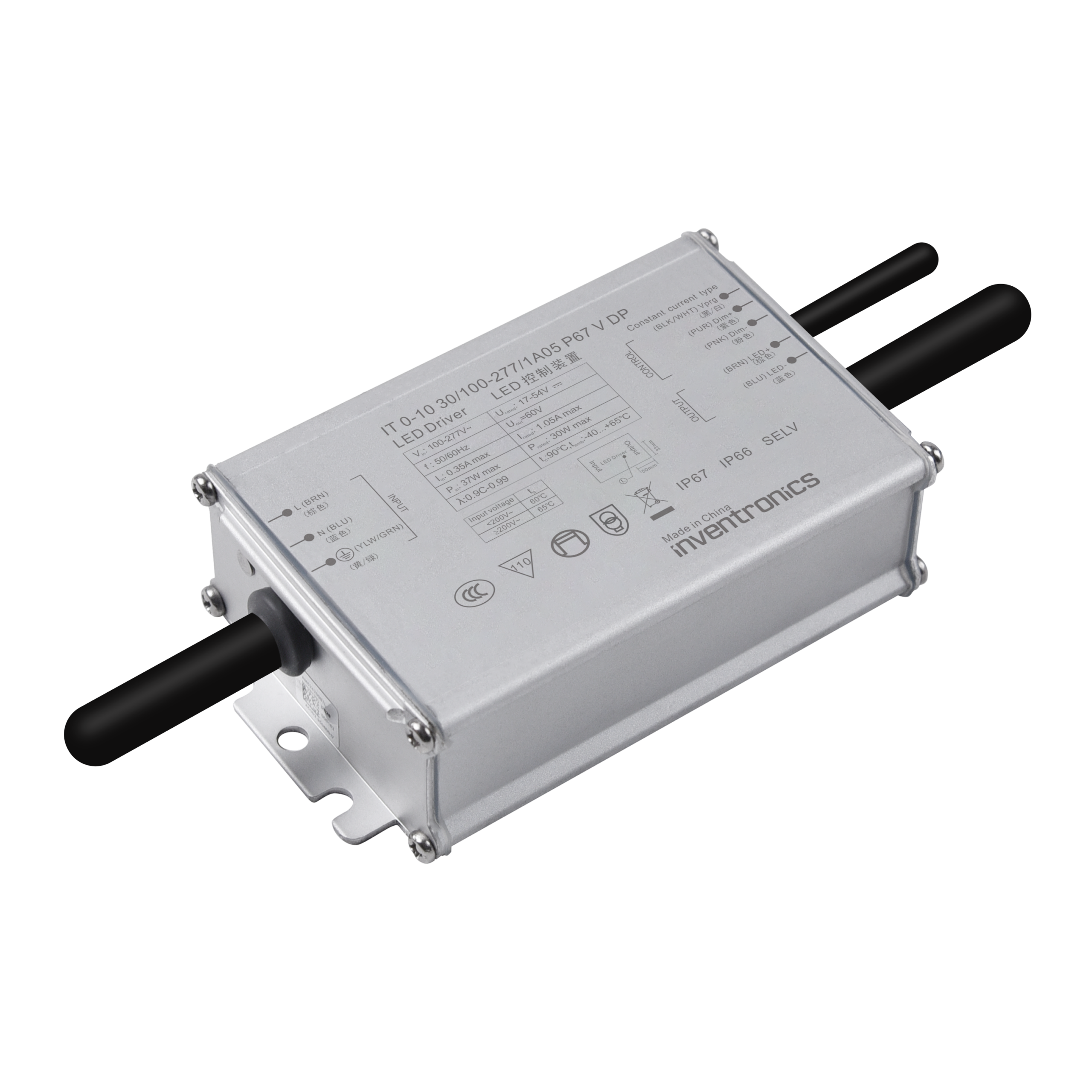

| 55-1050 | 550-1050 | 700 | 17–54 | 30 | 90.0% | 0.99 | 0.96 | IT 0-10 30/100-277/1A05 P67 V DP |
|
File Name
|
|---|
|
LED Driver Installation Instructions
|
|
Programming Interface Device Driver Install First (Updated March 2015)
|
|
Design-in Guide for Programming Drivers (Updated September 2018)
|
