Features

  • Non-Isolated Design with Low Residual Output Voltage < 2 kV
  • No Afterglow
  • Ultra High Efficiency (Up to 96%)
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with T4T(Tuner4TRONIC)
  • Isolated 0(1)-10V/PWM/Resistor/AstroDIM(Timer) Dimmable
  • Dim-to-Off with Standby Power ≤ 0.5 W
  • Adjustable Dimming Curve
  • Always-on Auxiliary Power: 12Vdc, 200mA
  • End-of-Life Indicator
  • Override Dimming
  • Constant Lumen
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: OTP, OVP, SCP
  • 5 Year Warranty

Application

  • IP66/IP67 and UL Dry/Damp/Wet Location
  • TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
  • Suitable for Luminaires with Protection Class I
  • Area Lighting, Industrial Lighting and Sports Lighting
Download Data Sheet
Order Here

Life Time

120,000 hours @ Case Temperature 75°C

Dimensions

5.59 x 2.52 x 1.26 inches
142 x 64 x 32 mm

Certifications

Adjustable Output Current Range (mA) Full Power Current Range (mA) Default Output Current (mA) Nominal Output Voltage Range (Vdc) Maximum Output Power (W) Typical Efficiency Power Factor λ Product Name

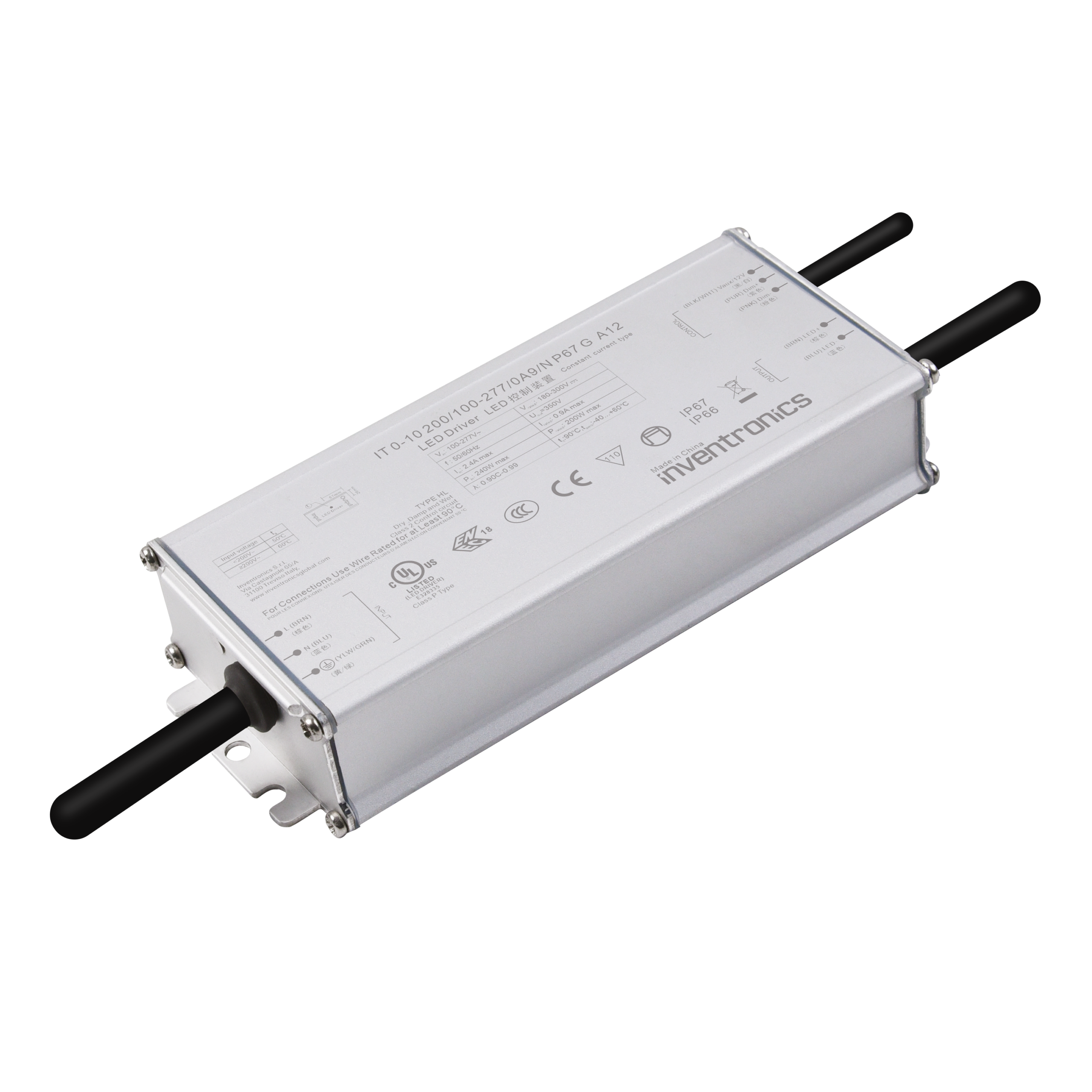

67-900 667-900 830 180-300 200 96.0% 0.97 IT 0-10 200/100-277/0A9/N P67 G A12
