FEATURES
- Adjust Color Temperature Continuously
- Adjust Intensity and Color Temperature Separately
- 60W Max Each Channel with Total 60W Load
- 1% Min Each Channel with Total 10% Min Dimming
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Flicker Free
- Output Lumen Compensation
- Input Surge Protection: DM 4kV, CM 6kV
- All-Around Protection: OVP, SCP, OTP
- IP66/IP67 (DV model)
- IP66 and UL Dry/Damp Location (DF model)
- SELV Output
- TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Life Time
106,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
4.92 x 2.52 x 1.44
Millimeters (L x W x H)
125 x 64 x 36.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 700 – 1050 mA | 700 mA | 90 ~ 305 Vac 127 – 300 Vdc |

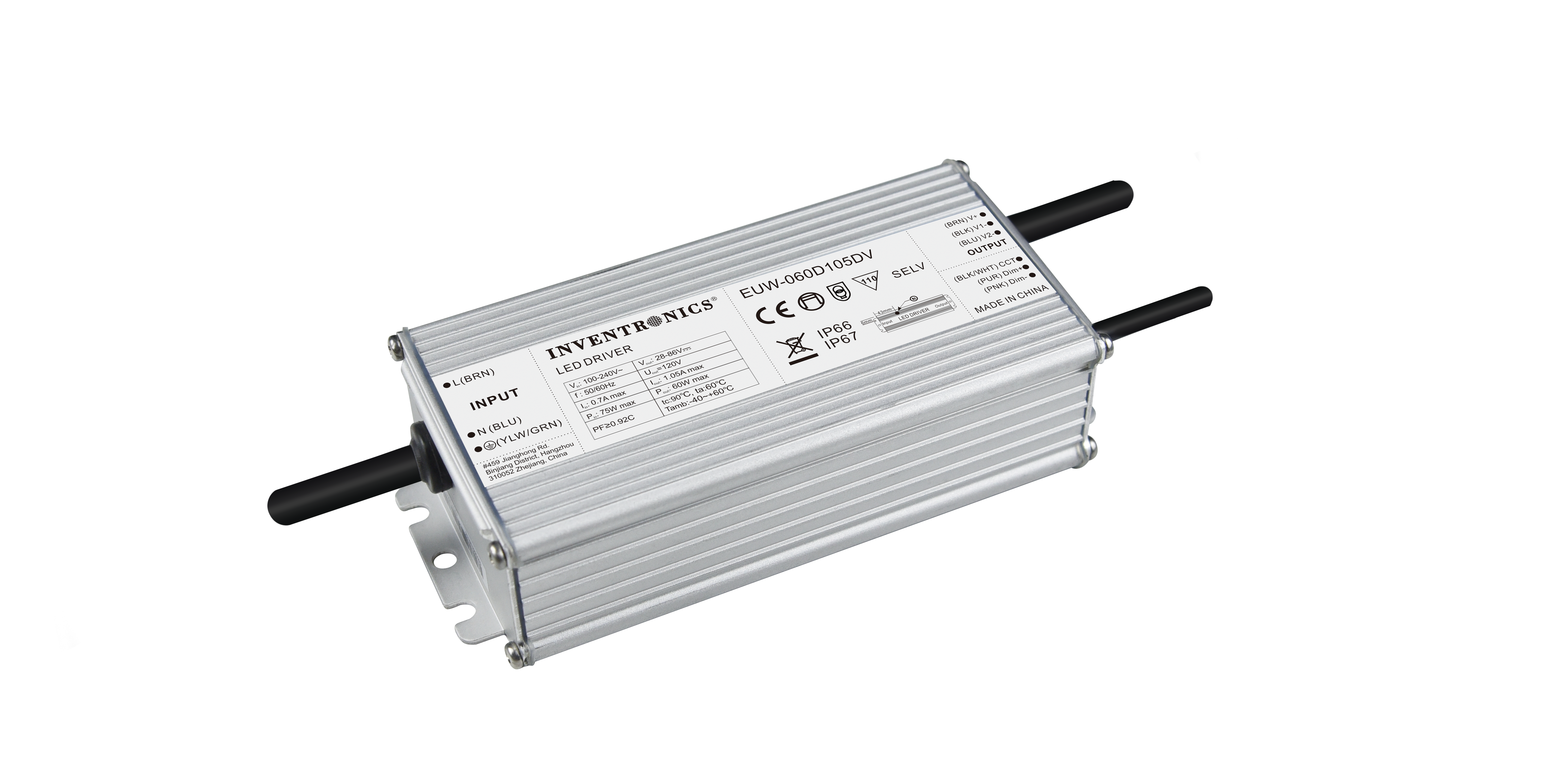

28 – 86 Vdc | 60 W | EUW-060D105DV |
|
