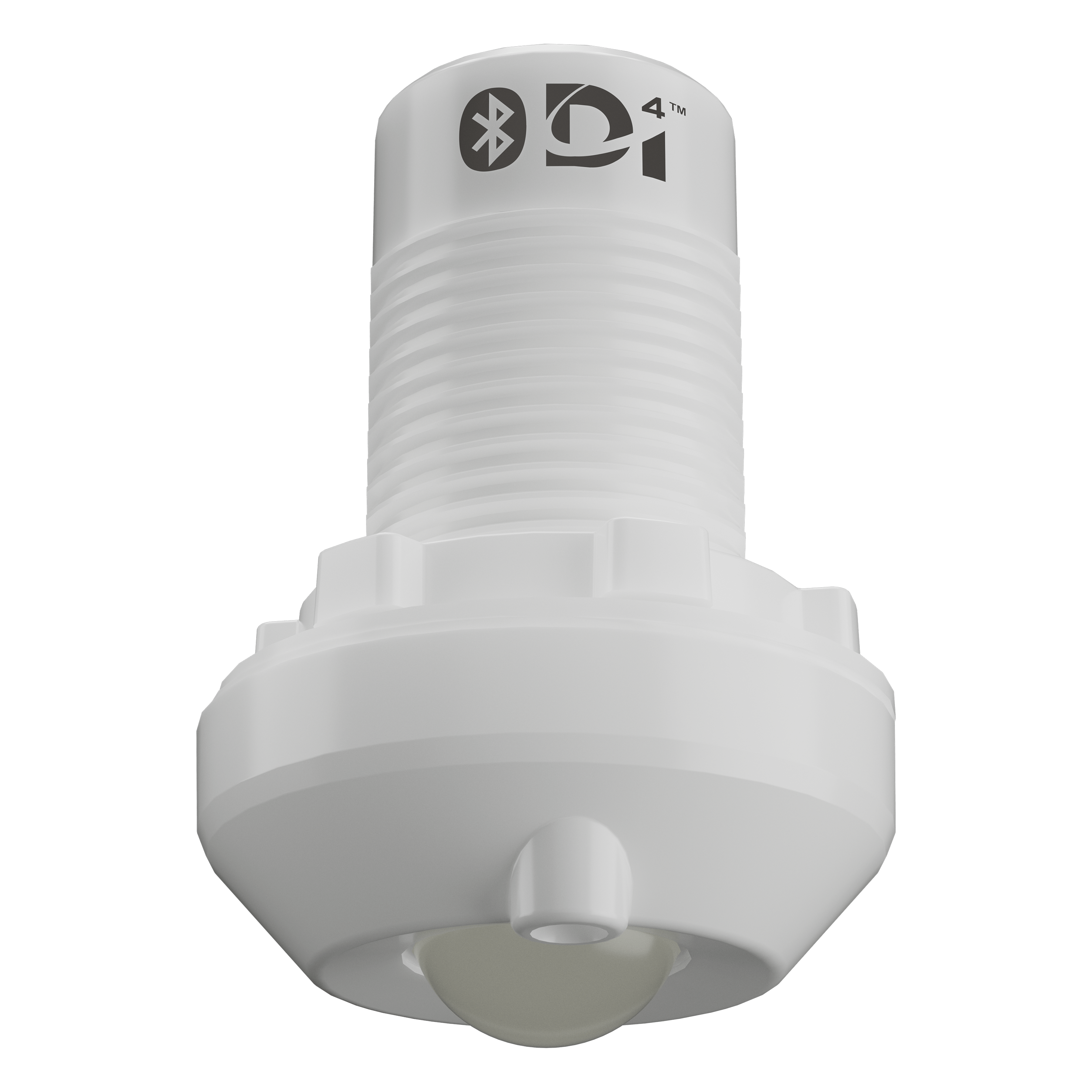

- Sensor for luminaire integration based on qualified Bluetooth mesh
- D4I controlled (energy reporting, diagnostic and maintenance)
- Stand by power consumption <150mW
- 50000 h lifetime at tc max = 60°C
- Installation height for low bay 2.5 – 3.5m
- IP grade IP65
- Wide detection range up to 20m
- Shield accessory
- UL
- 5 Years Guarantee
Life Time
50,000 hours @ Ta=50°C or Tc=60°C
Dimensions
- Screw thread length: 25 mm
- Length: 53.2 mm
- Diameter internal: 21.8 mm
- Diameter external: 37 mm
- Protrusion: 20.4 mm
- Mounting hole diameter: 22.2 – 23.2 mm
- Wire preparation length, input side: 7 – 9 mm
- Cable cross section, input side: 0.25 – 0.75 mm
- Maximum allowed cable length: 10 mm
Certifications
CE, LVD, EMC, DALI 2, RoHs & Reach compliance, UL
| Item | Value | Unit | Remarks |
| Rated voltage | 12 – 22.5 | Vdc | According to D4I standard |
| Average input current | 10 | mA | |
| Peak input current | 30 | mA | |
| System wattage | <150 | mW | Stand by power @ 16V |
| Radio frequency | 2.4 | GHz | |
| Max Tx Power | +8 | dBm | 4.484 mW |
| Wireless protocol | Bluetooth® Networked Lighting Control provided by SILVAIR | ||
| Range | 20 | m | Line of sight |
